GS15b
Tetrode
The GS15B tetrode is used for wideband power amplification at
frequencies up to 1000 MHz in RF equipment. In spite of its maximum frequency ratings, this
tube produces in excess of 300W output at 23cm without any sign of thermal drift! Empirically
gathered data initially indicating 23cm possibilities of the GS15B is shown at
HERE. A detailed description
of how to build a high performance 23cm 300W GS15B PA
HERE. How to prepare the GS15B for water cooling is
HERE.

GENERAL
Cathode: indirectly heated, oxidecoated.
Envelope: metal ceramic
Cooling: 30 m^{3}/hour forced air.
Height, mm, at most:  69
Diameter, mm, at most:  38.9
Mass, gm, at most:  140


C_{1}  grid 1; KP  cathode & heater; P  heater; C_{2}  grid 2; A  anode
ENVIRONMENTAL OPERATING CONDITIONS
Vibration loads:

frequency, Hz  51400 / 14002500
acceleration, m/s²  98 / 146
Multiple impacts with acceleration, m/s²  342
Ambient Conditions:
Temperature, °C  60 to +100
Relative humidity at up to +40 °C, %  98
NOMINAL ELECTRICAL PARAMETERS
Heater voltage, V  6.3
Heater current, A  2
Mutual conductance (V_{a} = 0.9KV, V_{g2} = 250V, V_{g1} = 10V, change in V_{g1} = 1V), mA/V:  9
Negative bias (V_{g1}) with V_{a} = 0.9KV, V_{g2} = 250V, V:  17 to 2
control gridcathode capacitance, pF  7
screen gridanode capacitance, pF  1.9
Warm up time, s:  <60
Designed Tube Life (hours)  >2000
ELECTRICAL PARAMETER LIMITS
Heater voltage, V  6.06.6
Heater current, A  1.852.2
control gridcathode capacitance, pF  68.5
screen gridanode capacitance, pF  1.52.3
Maximum CW Anode voltage (V_{a}), KV:  1.37
Maximum Anode Current (I_{a}), A:  0.24
"Maximum" Control Grid voltage range (V_{g1}), V  100 to 0
"Maximum" Control Grid current (I_{g1}), mA  40
Maximum Screen Grid voltage (V_{g2}), V  300
"Maximum" Screen Grid current range (I_{g1}), mA  10 to +10
Anode Dissipation, W:  200
Screen Grid (G2) Dissipation, W:  3
Control Grid (G1) Dissipation, W:  3
Temperature at envelope (hottest point), °C  200
Frequency, MHz:  <1000
Averaged Anode Characteristic Curves

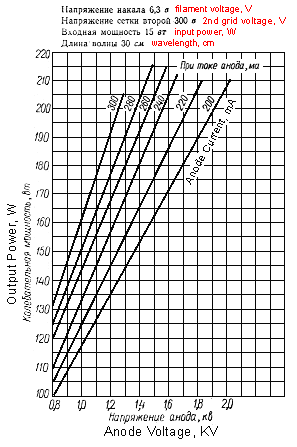

Averaged Anode Characteristic Curves: U_{f} = 6.3V; U_{g2} = 300V; I_{a} = 240mA; L = 30cm

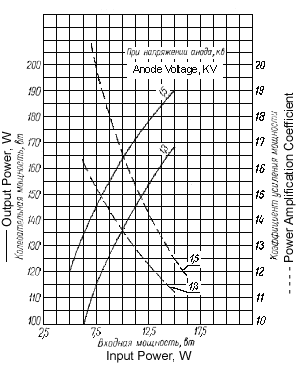

Averaged Anode Characteristic Curves: U_{f} = 6.3V; U_{a} = 1.5KV
Averaged Anode Characteristic Curves: U_{f} = 6.3V; U_{g2} = 300V;
